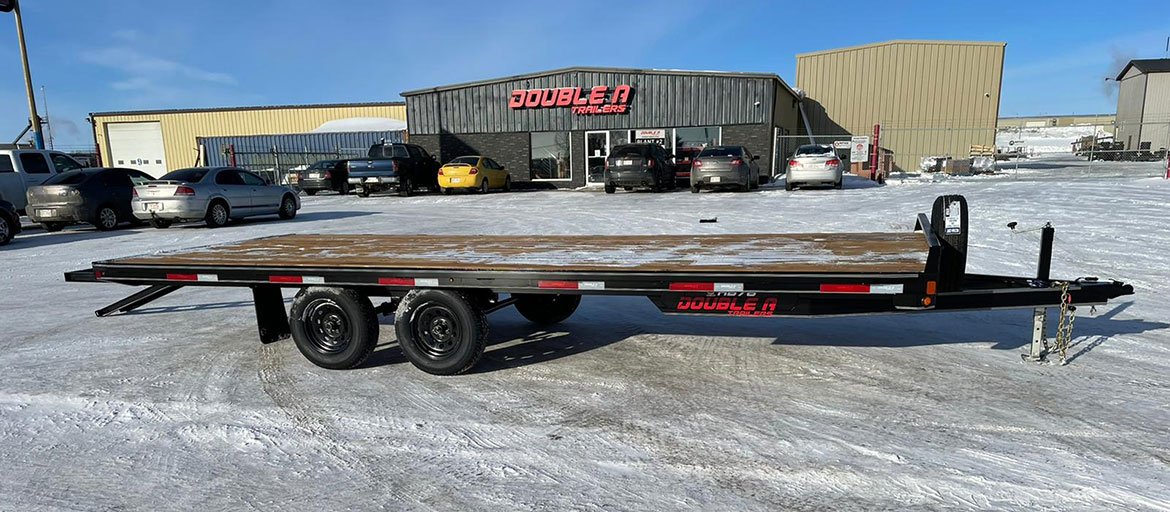

HB78 Highboy Trailer 7,000 GVW
Description
This trailer is robustly designed, featuring two 3,500 lb axles and an overall width of 102 inches, ensuring a spacious and stable platform. The deck, standing at a height of 34 inches, is constructed of 2-inch treated wood, securely fastened with 1/4" Torx screws, offering durability and reliability for various loads. It boasts a 5-inch channel lace rail complete with pockets and a rubrail for added versatility and load security. The trailer is equipped with a 2 5/16" A-Frame coupler and has 3-inch channel crossmembers placed at 18-inch intervals, further enhancing its structural integrity.
The trailer's tires are sized at 225/75R15, suitable for heavy-duty applications. It features a single 8,000 lb landing gear, providing stable and reliable support when stationary. Although it doesn't include a toolbox, it comes with 5/16 Grade 70 safety chains with grab hooks for added safety during transport. The wiring is Arctic grade, soldered and protected in a conduit, ensuring longevity and performance in various weather conditions. The lighting system comprises rubber-mounted LEDs, ensuring visibility and safety on the road.
Finally, the trailer's finish is a testament to its quality, being sandblasted and painted with PPG urethane paint, which not only gives it a professional appearance but also provides protection against the elements, ensuring a long-lasting and resilient performance.
-
Axle Size: (2) 3,500 lb
Width: 102" Overall Width
Deck Height: 34"
Lace Rail: 5" Channel with Pockets & Rubrail
Coupler: 2 5/16" A-Frame
Crossmembers: 3" Channel on 18" Centers
Tire & Rim: 225/75R15
Landing Gear: (1) 8,000 lb
Toolbox: None
Safety Chains: 5/16 Grade 70 Chain with Grab Hooks
Wiring: Arctic Wiring, Soldered & Enclosed in Conduit
Lights: Rubber Mounted LED
Decking: 2" Treated Wood, fastened with 1/4" Torx Screws
Finish: Sandblasted and Painted with PPG Urethane Paint
-
16'
Main Frame: 5" Channel
Carrying Capacity: 4,400 lbs
Tare Weight: 2,600 lbs
18'
Main Frame: 5" Channel
Carrying Capacity: 4,230 lbs
Tare Weight: 2,770 lbs
20'
Main Frame: 5" Channel
Carrying Capacity: 4,050 lbs
Tare Weight: 2,950 lbs
